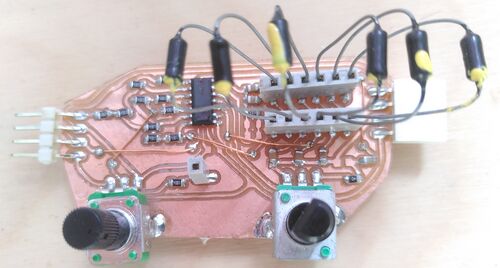

The ladder filter is famous for its use in moog synthesisers. This one of course allows you to use natural semiconductors


Licenced under the CERN Open Hardware Licence Version 2 – Strongly Reciprocal

Inputs

  • Six diodes via PCB socket connector
  • Cutoff CV

Controls

  • Cutoff
  • Resonance

Outputs

  • Audio signal

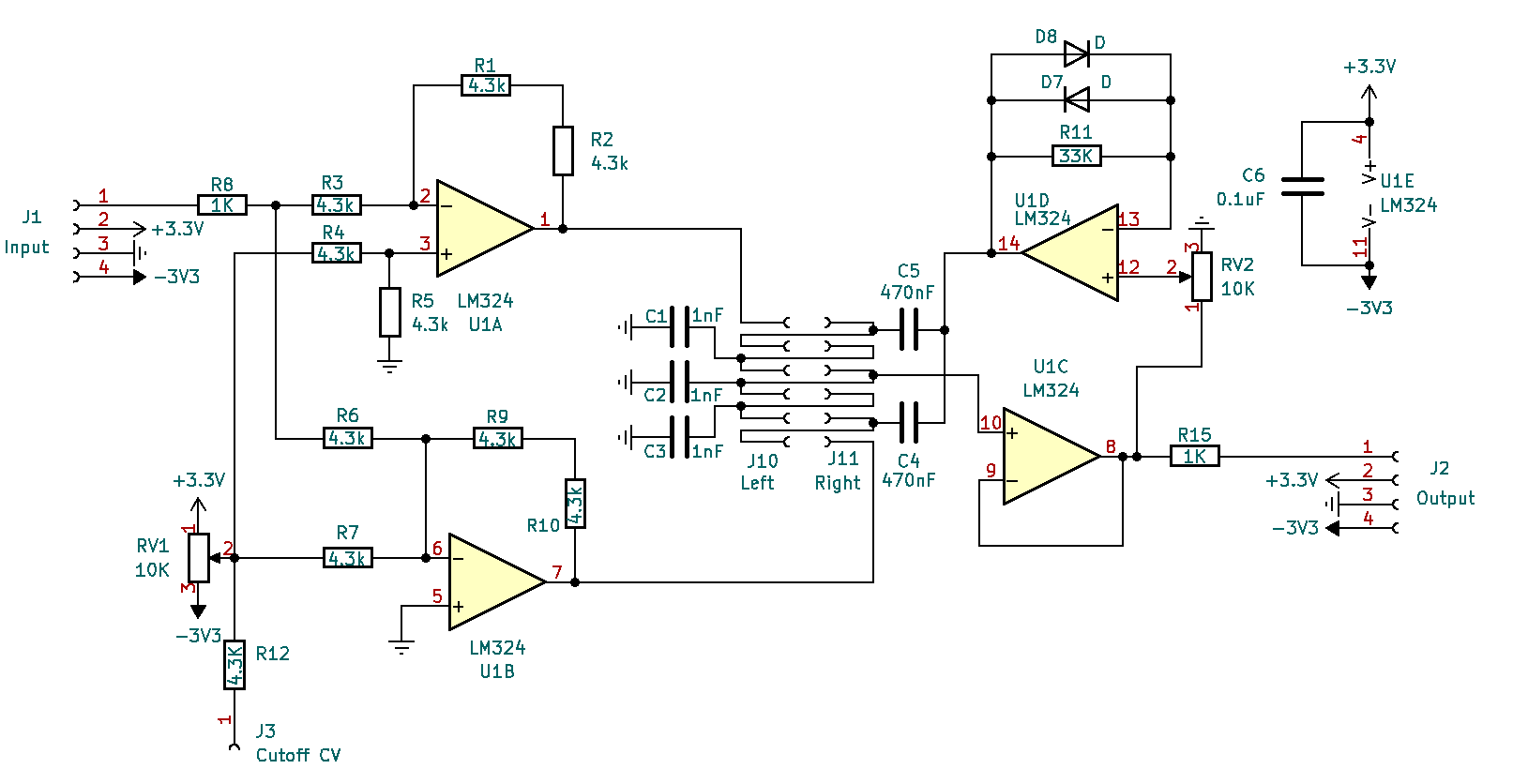

Schematic

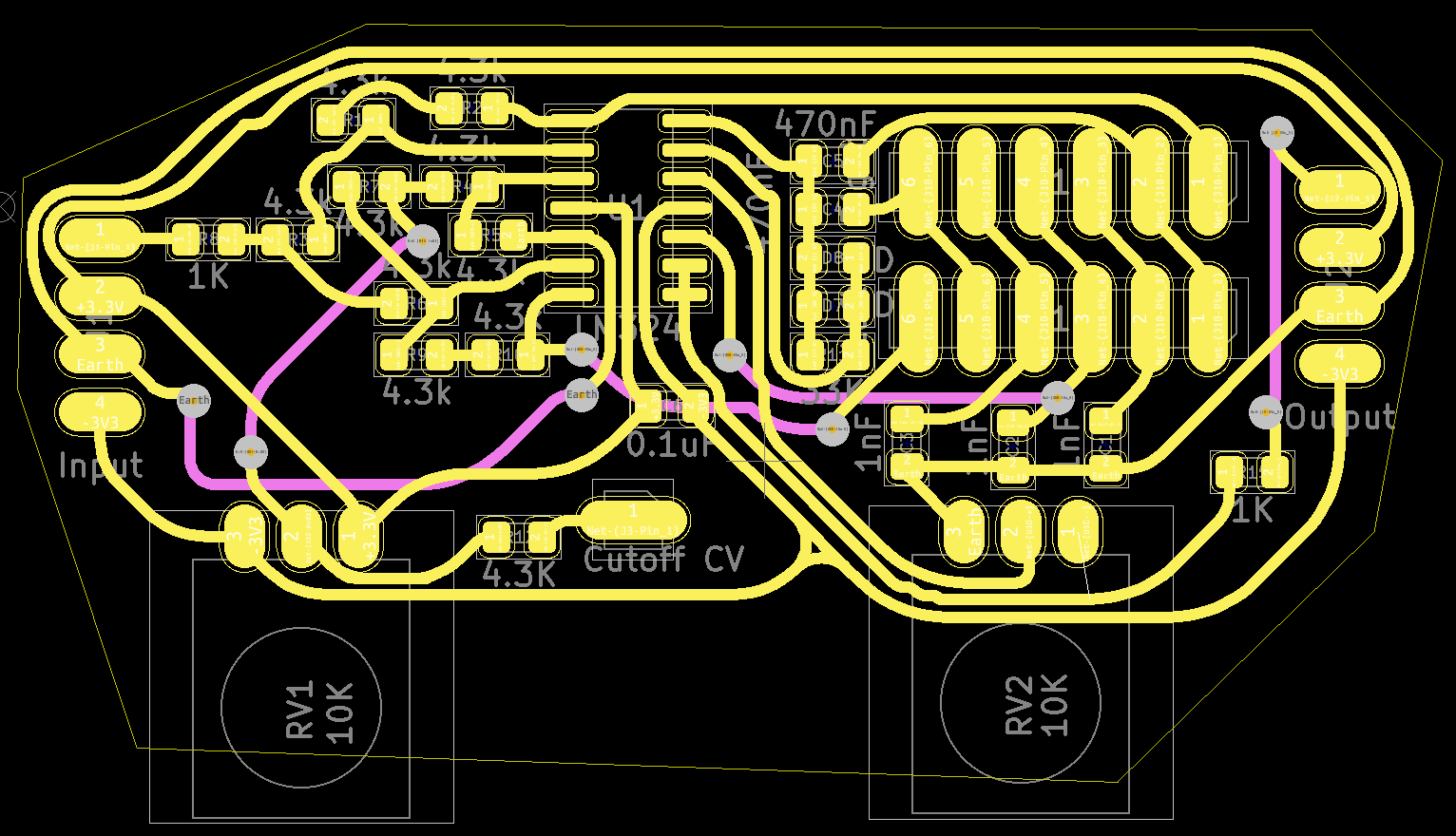

PCB layout
